Description

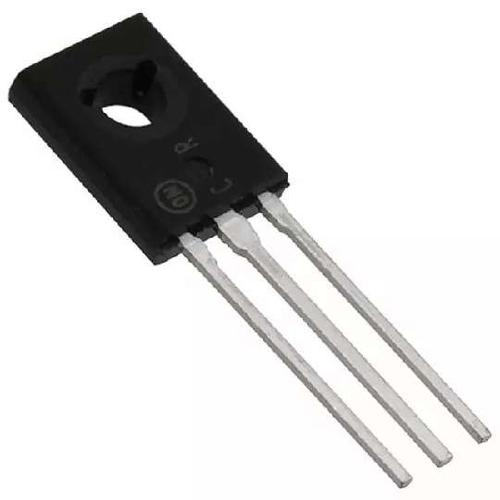

- The 2N4922G is a 60V Silicon NPN Bipolar Plastic Medium Power Transistor designed for driver circuits, switching and amplifier applications.
- Excellent safe operating area
- Low saturation voltage
- Excellent power dissipation due to thermo pad construction
- High performance
2N4922G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-225-3 |
| Frequency | 3 MHz |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 1.00 A |
| Halogen Free Status | Halogen Free |
| Number of Positions | 3 Position |
| Polarity | NPN |
| Power Dissipation | 30 W |
| Breakdown Voltage (Collector to Emitter) | 60 V |
| Thermal Resistance | 4.16℃/W (RθJC) |
| Continuous Collector Current | 1A |
| hFE Min | 30 @500mA, 1V |
| hFE Max | 150 |
| Input Power (Max) | 30 W |
| DC Current Gain (hFE) | 10 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 30000 mW |
| Show | |
| Size-Length | 7.8 mm |
| Size-Width | 2.66 mm |
| Material | Silicon |
| Operating Temperature | -65℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | EAR99 |
