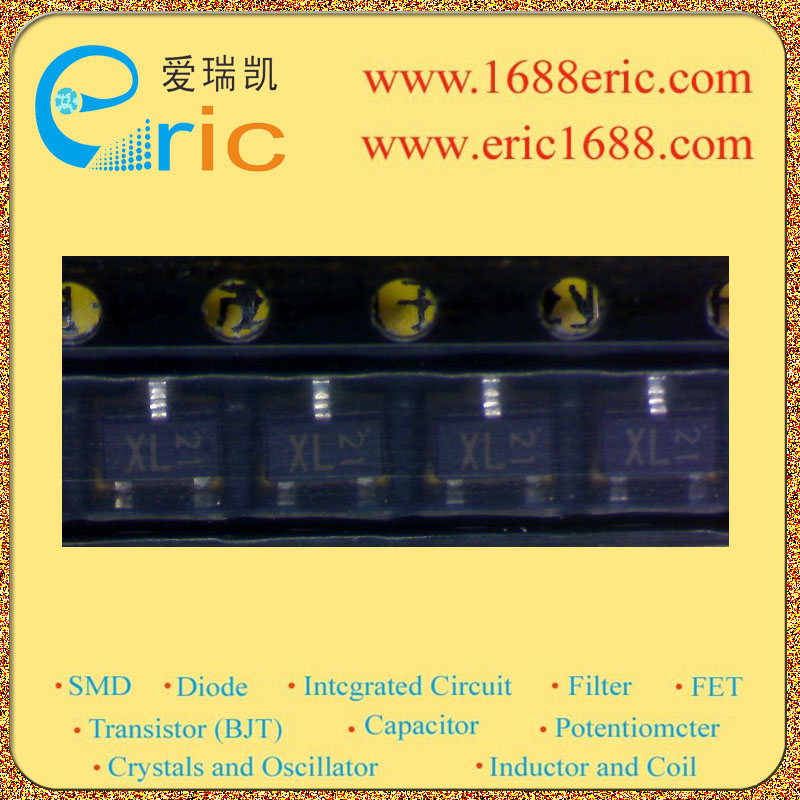

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

For Muting (20V,0.3A) High DC current gain: hFE = 820 to 2700； High emitter-base voltage.Vebo=25V（min）； low R on，R on=0.7Ω

Show

2SD2704K Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	SOT-23
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	25 V
Continuous Collector Current	0.3A
hFE Min	820
hFE Max	2700
	Show
Product Lifecycle Status	Active
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
