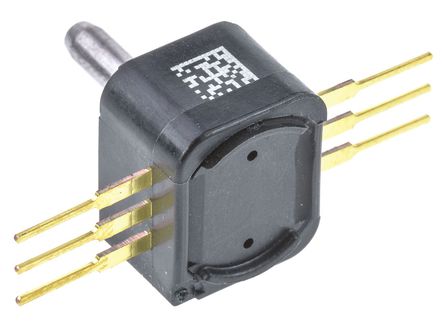

Image is for your reference only,please check specifications for details

Updated at 31/03/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 40PC series miniature signal conditioned Pressure Sensor based on silicon piezoresistive technology.
Minimal PCB space
Fully signal conditioned
Monolithic design
Port designed for O-ring interface
Excellent media compatibility
Accuracy of 0.2%

Show

40PC015G1A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Supply Voltage (DC)	5.00 V
Voltage Rating (DC)	5.00 V
Output Voltage	≤4.50 V
Supply Current	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-45 ℃
Accuracy	±4 %
Voltage Rating	5 VDC
Supply Voltage	4.75V ~ 5.25V
	Show
Size-Height	19.8 mm
Operating Temperature	-45℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
