7101MD9AV2BE - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC10016000
Category:
Toggle Switch, Switch Toggle
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Switch: toggle; Positions:2; SPDT; ON-ON; 2A/250VAC; 5A/28VDC; IP40
Stock Locations:
Availability:
202 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.29

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

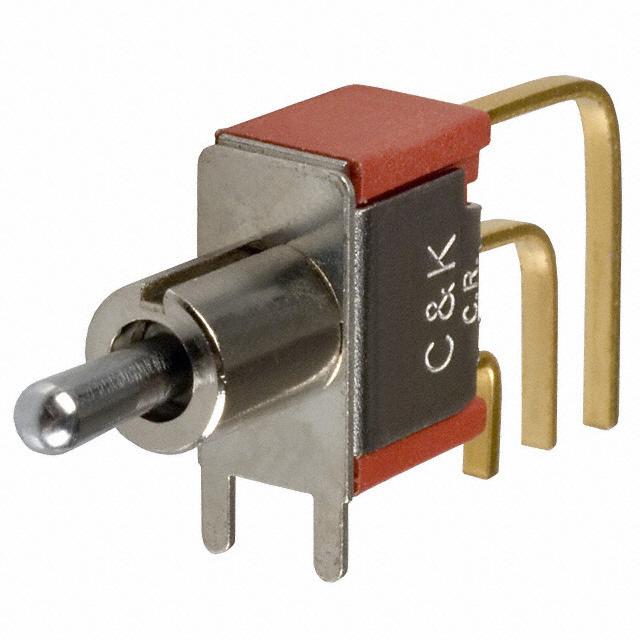

The 7101MD9AV2BE is a single-pole double-throw (SPDT) Miniature Toggle Switch with vertical right angle PC through-hole termination, 0.200-inch high chrome plated brass actuator, 0.280-inch high keyway bushing and ON-NONE-ON function. The 7000 series switch has gold over nickel plated copper alloy contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.
1000Vrms at sea level Minimum dielectric strength
-30 to 65°C Operating temperature range
Solderability as per MIL-STD-202F method 208D or EIA RS-186E method 9 (1 hour steam aging)

Show

7101MD9AV2BE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	-
Contact Plating	Gold
Voltage Rating (DC)	20 V
Voltage Rating (AC)	20 V
Current Rating	5 A
Insulation Resistance	1 GΩ
Number of Rows	1 Row
Contacts Type	SPDT
Number of Positions	3 Position
Contact Resistance	≤10 MΩ
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	20 V
Voltage Rating (DC Max)	20 V
Voltage Rating (AC Max)	20 V
Maximum Contact Resistance (Max)	<10 mΩ
	Show
Size-Length	6.86 mm
Size-Height	12.7 mm
Contact Material	Copper Alloy
Operating Temperature	-30℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
