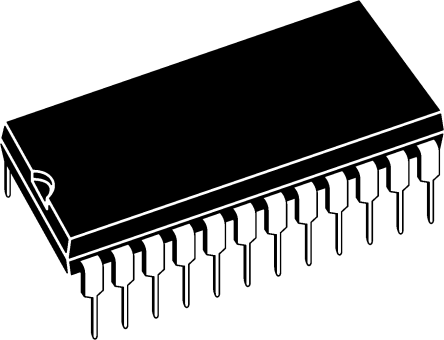

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 74HCT154N is a 4-to-16 line Decoder or Demultiplexer with high-speed Si-gate CMOS device and is pin compatible with low-power Schottky TTL (LSTTL ). This decoder accepts four active high binary address inputs and provide 16 mutually-exclusive active low outputs. The two-input enable gate can be used to strobe the decoder to eliminate the normal decoding glitches on the outputs or can be used for the expansion of the decoder. The enable gate has two ANDed inputs which must be low to enable the outputs.
- Decodes 4 binary-coded inputs into 16 mutually-exclusive outputs
- ESD protection HBM EIA/JESD22-A114D exceeds 2000V
- ESD sensitive device, take proper precaution while handling the device.
74HCT154N Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 24 Pin |
| Case/Package | DIP |
| Supply Voltage (DC) | 4.50V (min) |
| Number of Outputs | 16 Output |
| Number of Circuits | 1 Circuit |
| Number of Positions | 24 Position |
| Number of Gates | 1 Gate |
| Input Capacitance | 3.50 pF |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 32 mm |
| Size-Width | 14.1 mm |
| Size-Height | 4 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
