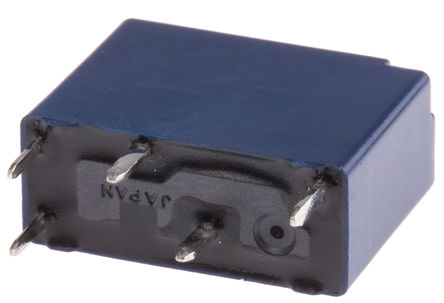

Image is for your reference only,please check specifications for details
- ACTP112 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC87253763
-
Category:Power Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Power/Signal Relay, SPDT, Momentary, 0.083A (Coil), 12VDC (Coil), 1000mW (Coil), 30A (Contact), 14VDC (Contact), AC-DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
-
Stock Locations:
-
Availability:244 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 15.98
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- RELAY AUTOMOTIVE SPDT 30A 12V
ACTP112 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | - |
| Insulation Resistance | 100 MΩ |
| Coil Voltage | 12 VDC |
| Coil Current | 83.3 mA |
| Coil Resistance | 144 Ω |
| Coil Voltage (DC) | 12 V |
| Coil Power | 1 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 17.4 mm |
| Size-Height | 13.5 mm |
| Contact Material | Silver Alloy |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
