- AD623ANZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC303763
-
Category:Instrumentation Amplifier IC
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Instrument Amplifier, 1 Amplifier, 200µV, 0.3V/µs, 800kHz, 2.7V to 12V, ± 2.5V to ± 6V, DIP
-
Stock Locations:
-
Availability:145 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

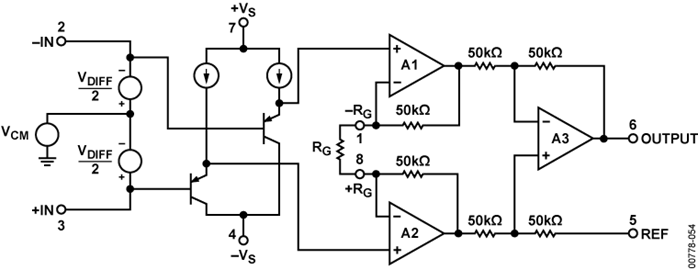

- The AD623ANZ is a single supply, rail to rail, low cost instrumentation amplifier in 8pin DIP package. This easy to use instrumentation amplifier delivers rail to rail output swing on 3V to 12V supply. The AD623 offers superior user flexibility by allowing single gain set resistor programming and by conforming to 8 lead industry standardpin-out configurations. The AD623 is configured for unity gain (G = 1) with no external resistor and it can be programmed for gains up to 1000 with an external resistor. It holds errors to minimum by providing superior CMRR that increases with increasing gain. Low power consumption (1.5mW at 3 V), wide supply voltage range and rail to rail output swing make the AD623 ideal for battery powered applications. The rail to rail output stage maximizes the dynamic range when operating from low supply voltages. This amplifier replaces discrete instrumentation amplifier designs and offers superior linearity, temperature stability and reliability.
- Higher performance than discrete design
- Single and dual supply operation
- Low power, 550µA maximum supply current
- Gain range from 1 (no resistor) to 1000
- Slew rate of 0.3V/µs
- 35nV/√Hz RTI noise at 1KHz (G = 1)
- Common mode rejection (CMR) of 80dB at 60Hz with 1Kohm source imbalance (G = 1)
- Small signal -3dB bandwidth of 800KHz at G = 1
- 30µs settling time to 0.01% (G = 1)
- Operating temperature range from -40°C to 85°C
- ESD (electrostatic discharge) sensitive device. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
AD623ANZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Supply Voltage (DC) | 5.00 V |
| Supply Current | 375 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 650 mW |
| Common Mode Rejection Ratio | 110 dB |
| Bandwidth | 800 kHz |
| Slew Rate | 300 mV/μs |
| Gain Bandwidth Product | 800 kHz |
| Input Offset Voltage | 200 µV |
| Input Bias Current | 17 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 800 kHz |
| Power Dissipation (Max) | 650 mW |
| Minimum CMRR Range | 70 dB |
| Supply Voltage (Max) | 10V ~ 15V |
| Show | |
| Size-Length | 9.27 mm |
| Size-Width | 7.24 mm |
| Size-Height | 3.43 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
