AD8657ARMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1425900
Category:
Operational Amplifier, OP Amp IC
Package:

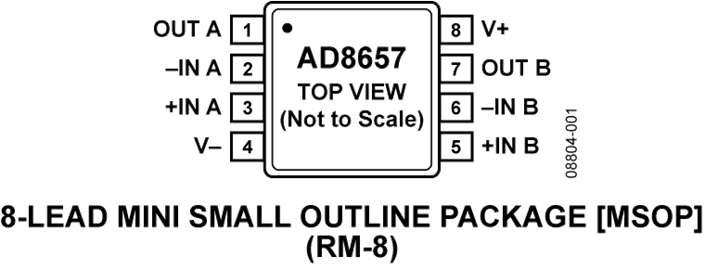

MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8657ARMZ Operational Amplifier, Dual, 2 Amplifier, 200kHz, 70V/µs, 2.7V to 18V, MSOP, 8Pins
Stock Locations:
Availability:
235 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.73

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8657ARMZ is a CMOS Dual Rail-to-rail Input/Output Operational Amplifier optimized for low power and wide operating supply voltage range applications. It operates from 2.7 to 18V with a typical quiescent supply current of 18µA. The op amp uses patented DigiTrim® trimming technique which achieves low offset voltage and also has high immunity to electromagnetic interference. The combination of low supply current, low offset voltage, very low input bias current, wide supply range and rail-to-rail input and output make the AD8657 ideal for current monitoring in process and motor control applications. The combination of precision specifications makes these devices ideal for DC gain and buffering of sensor front ends or high impedance input sources in wireless or remote sensors or transmitters.
22µA Maximum micropower at high voltage
350µV Maximum offset voltage
20pA Maximum input bias current
Single-supply/dual-supply operation
230kHz Unity-gain crossover
Unity-gain stable
Excellent electromagnetic interference immunity
ESD sensitive device, take proper precaution while handling the device.

Show

AD8657ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	18 µA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Common Mode Rejection Ratio	94 dB
Input Capacitance	10.5 pF
Bandwidth	200 kHz
Slew Rate	70.0 V/μs
Gain Bandwidth Product	200 kHz
Input Impedance	10.0 GΩ
Input Offset Voltage	350 µV
Input Bias Current	5 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.23 MHz
Minimum CMRR Range	94 dB
Supply Voltage	2.7V ~ 18V
	Show
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
