Description
- Product Details

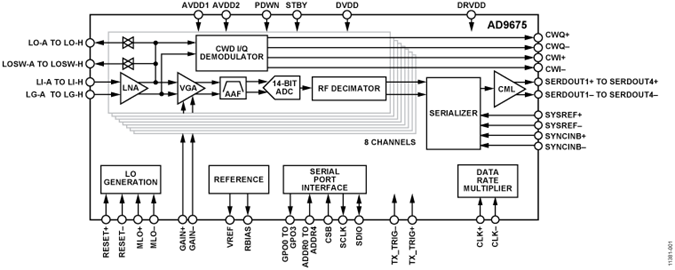

- The AD9675 is designed for low cost, low power, small size, and ease of use for medical ultrasound. It contains eight channels of a variable gain amplifier (VGA) with a low noise preamplifier (LNA), a continuous wave (CW) harmonic rejection I/Q demodulator with programmable phase rotation, an antialiasing filter (AAF), an analog-to-digital converter (ADC), and a digital high-pass filter and RF decimation by 2 for data processing and bandwidth reduction.
- Each channel features a maximum gain of up to 52 dB, a fully differential signal path, and an active input preamplifier termination. The channel is optimized for high dynamic performance and low power in applications where a small package size is critical.
- The LNA has a single-ended to differential gain that is selectable through the serial port interface (SPI). Assuming a 15 MHz noise bandwidth (NBW) and a 21.6 dB LNA gain, the LNA input SNR is 94 dB. In CW Doppler mode, each LNA output drives an I/Q demodulator that has independently programmable phase rotation with 16 phase settings.
- Power-down of individual channels is supported to increase battery life for portable applications. Standby mode allows quick power-up for power cycling. In CW Doppler operation, the VGA, AAF, and ADC are powered down. The ADC contains features to maximize flexibility and minimize system cost, such as a programmable clock, data alignment, and programmable digital test pattern generation. The digital test patterns include built-in fixed patterns, built-in pseudorandom patterns, and custom user-defined test patterns entered via the SPI.
- Applications
- Medical imaging/ultrasound
- Nondestructive testing (NDT)
- ### Features and Benefits
- 8 channels of LNA, VGA, AAF, ADC, and digital RF decimator
- Low power:
- \- 150 mW per channel, TGC mode, 40 MSPS
- \- 62.5 mW per channel, CW mode
- 10 mm × 10 mm, 144-ball CSP_BGA
- TGC channel input referred noise: 0.82 nV/√Hz, maximum gain
- Flexible power-down modes
- Fast recovery from low power standby mode: 2 μs
- Low noise preamplifier (LNA)
- Input referred noise:
- 0.78 nV/√Hz, gain = 21.6 dB
- Programmable gain: 15.6 dB, 17.9 dB, or 21.6 dB
- 0.1 dB compression: 1000 mV p-p, 750 mV p-p, or 450 mV p-p
- Flexible active input impedance matching
- Variable gain amplifier (VGA)
- Attenuator range: 45 dB, linear in dB gain control
- Postamp gain (PGA): 21 dB, 24 dB, 27 dB, or 30 dB
- Antialiasing filter (AAF)
- Programmable second-order low-pass filter (LPF) from 8 MHz to 18 MHz or 13.5 MHz to 30 MHz and high-pass filter (HPF)
- Analog-to-digital converter (ADC)
- SNR: 75 dB, 14 bits up to 125 MSPS
- JESD204B Subclass 0 coded serial digital outputs
- See data sheet for additional features
AD9675KBCZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 144 Pin |
| Case/Package | BGA-144 |
| Supply Voltage (DC) | 1.70V (min) |
| Power Rating | 150 mW |
| Number of Channels | 8 Channel |
| Number of Positions | 144 Position |
| Number of Bits | 14 Bit |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.7 V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
