Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 3 Pin |

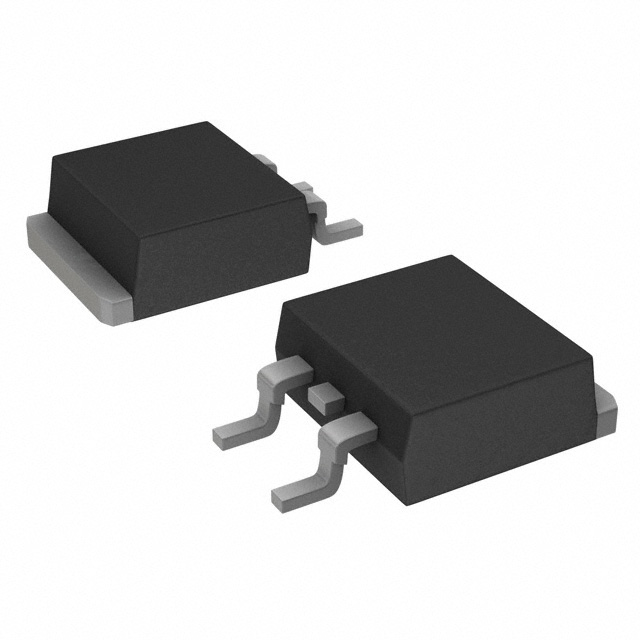

Case/Package | TO-263-3 |
Power Rating | 93 W |
Polarity | P-CH |
Power Dissipation | 2.1W (Ta), 187W (Tc) |
Drain to Source Voltage (Vds) | 60 V |
Continuous Drain Current (Ids) | 78A |
Rise Time | 20 ns |
Input Capacitance (Ciss) | 6400pF @30V(Vds) |
Input Power (Max) | 2.1 W |
Fall Time | 37 ns |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 2.1W (Ta), 187W (Tc) |
Show | |
Operating Temperature | -55℃ ~ 175℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
