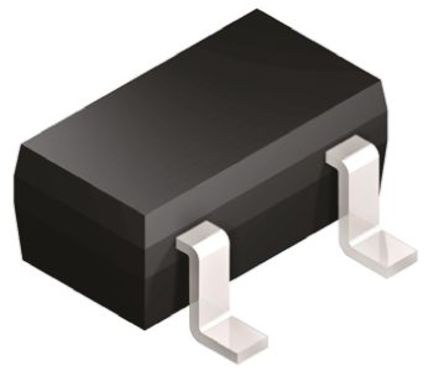

BAT721A - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC121933921
Category:
Schottky Diode
Package:
SOT-23
Datasheet:
Datasheet 3D Model
Description:
NXP BAT721A Small Signal Schottky Diode, Dual Common Anode, 40V, 200mA, 550mV, 1A, 150℃
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BAT721A is a planar Schottky Barrier Diode with an integrated guard ring for stress protection, encapsulated in a small surface-mounted device (SMD) plastic package. It is used for ultra high-speed switching, voltage clamping, protection circuits and blocking diode.
Low forward voltage
Low capacitance
AEC-Q101 qualified

Show

BAT721A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23
Number of Positions	3 Position
Forward Voltage	450 mV
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	3 mm
Size-Width	1.4 mm
Size-Height	1.1 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
