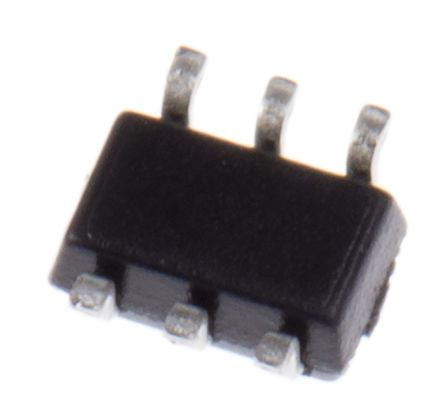

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BC846BDW1T1G is a NPN dual Transistor, designed for general purpose amplifier applications. Ideal for low power surface mount applications.
- AEC-Q101 Qualified
- PPAP capable
- Halogen-free
BC846BDW1T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-70-6 |
| Frequency | 100 MHz |
| Voltage Rating (DC) | 65.0 V |
| Current Rating | 100 mA |
| Halogen Free Status | Halogen Free |
| Number of Positions | 6 Position |
| Polarity | NPN |
| Power Dissipation | 380 mW |
| Breakdown Voltage (Collector to Emitter) | 65 V |
| Continuous Collector Current | 0.1A |
| hFE Min | 200 |
| Input Power (Max) | 380 mW |
| DC Current Gain (hFE) | 290 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 380 mW |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
