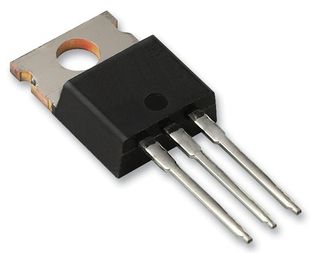

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS117 is an N channel vertical Power FET in Smart SIPMOS® technology. Providing embedded protection functions.
Logic level input
Input protection (ESD)
Thermal protection with latch
Overload protection
Short-circuit protection
Overvoltage protection
Current limitation
Analog driving possible
Green product
AEC qualified

Show

BTS117 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	1.30V (min)
Voltage Rating (DC)	60.0 V
Current Rating	3.50 A
Number of Outputs	1 Output
Input Voltage (DC)	60.0 V
Output Current	3.5 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	100 mΩ
Polarity	N-Channel
Power Dissipation	50000 mW
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	3.50 A
Output Current (Max)	3.5 A
Output Current (Min)	3.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	50000 mW
Supply Voltage	2.2V ~ 10V
Supply Voltage (Max)	10 V
Supply Voltage (Min)	1.3 V
Input Voltage	60 V
	Show
Size-Length	10 mm
Size-Width	4.4 mm
Size-Height	15.65 mm
Size-Thickness	4.40 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
