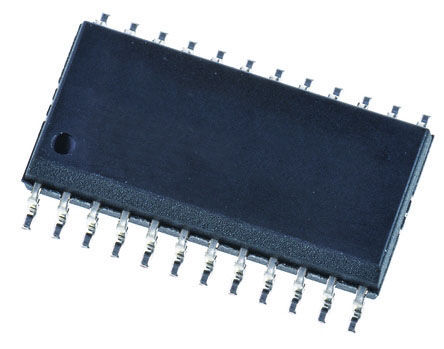

Image is for your reference only,please check specifications for details

CD74HCT4067M - TI
Manufacturer:
TI
ManyChip's Part#:
MC14258962
Category:
Multiplexer IC
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CD74HCT4067M Analog Multiplexer / Demultiplexer, 16:1, 1 Circuit, 180Ω, 8μA, 4.5V to 5.5V, SOIC-24
Stock Locations:
Availability:
277 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.21

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CD74HCT4067M is a CMOS logic high-speed 16-channel Analogue Multiplexer/Demultiplexer with TTL inputs. This device is designed to achieve operating speeds similar to LSTTL, with the low power consumption of standard CMOS integrated circuits. This analogue multiplexer/demultiplexer control analogue voltages that may vary across the voltage supply range. This is a bidirectional switch thus allowing any analogue input to be used as an output and vice-versa. The switch has low "on" resistance and low "off" leakages. In addition, this multiplexer/demultiplexer has an enable control which when high will disable all switches to their "off" state.
Fast switching and propagation speeds
Balanced propagation delay and transition times
Significant power reduction compared to LSTTL logic ICs
Green product and no Sb/Br

Show

CD74HCT4067M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOIC-24
Number of Outputs	1 Output
Supply Current	8.00 µA
Number of Circuits	1 Circuit
Number of Channels	16 Channel
Number of Positions	24 Position
Number of Bits	16 Bit
Bandwidth	89 Mhz
Number of Inputs	16 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
3dB Bandwidth	89 MHz
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	15.4 mm
Size-Width	7.52 mm
Size-Height	2.35 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
