Description

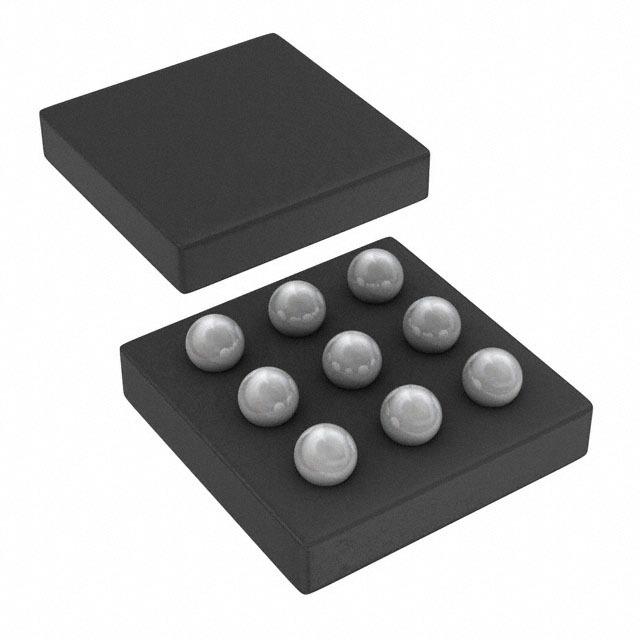

- The CSD75207W15 device is designed to deliver the lowest on-resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra-low profile. Low on-resistance coupled with the small footprint and low profile make the device ideal for battery-operated space-constrained applications. The device has also been awarded with U.S. patents 7952145, 7420247, 7235845, and 6600182.
CSD75207W15 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 9 Pin |
| Case/Package | UFBGA-9 |
| Drain to Source Resistance (on) (Rds) | 54 mΩ |
| Polarity | P-CH |
| Power Dissipation | 0.7 W |
| Threshold Voltage | 800 mV |
| Rise Time | 8.6 ns |
| Input Capacitance (Ciss) | 595pF @10V(Vds) |
| Input Power (Max) | 700 mW |
| Fall Time | 16 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 700 mW |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
