Description

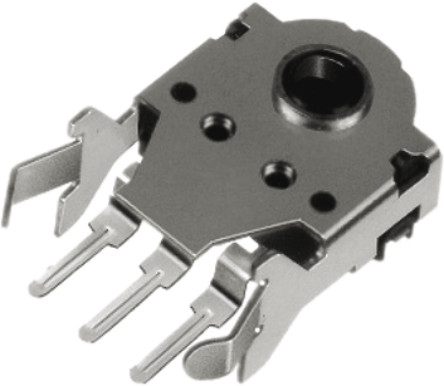

- The EC10E1220501 is a 10mm Hollow Shaft Incremental Encoder operates in horizontal direction. It features 24 detents, 12 pulses and a series of compact and long-life encoders with unique hollow shaft design. It is suitable for use with personal audio, health care, PC and peripherals.
- Insertion terminal
- 9mm Mounting height
- 100000 Cycles operating life
- 50MR/50VDC Minimum insulation resistance
- 50VAC for 1 Minute voltage proof
- -5 to +45°C Operating temperature (-30 to +85°C for automotive)
EC10E1220501 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | PCB |
| Number of Pins | 3 Pin |
| Supply Voltage (DC) | 5.00V (max) |
| Number of Channels | 2 Channel |
| Number of Detents | 24 Detent |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Supply Voltage (Max) | 5 VDC |
| Show | |
| Size-Height | 12.6 mm |
| Operating Temperature | -30℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8543709650 |
| HK STC License | NLR |
