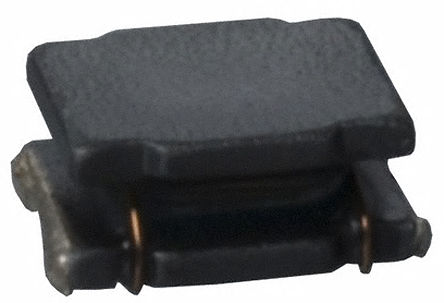

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 3.3µH Shielded Wirewound Inductor 2.3A 44mOhm Nonstandard
LQH5BPN3R3NT0L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 2020 |
| Current Rating | 2.3 A |
| Capacitance Tolerance | ±30 % |
| Inductance | 3.3 µH |
| Self Resonant Frequency | 40 MHz |
| Part Family | LQH |
| Inductance Tolerance | ±30 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤52.8 mΩ |
| Current Rating (DC) | 3.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.044 Ω |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5.2 mm |
| Size-Height | 2.2 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 500 |
| RoHS | RoHS Compliant |
| Lead-Free Status | PB free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
