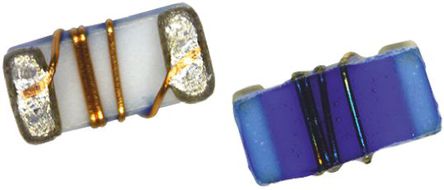

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 150nH Unshielded Wirewound Inductor 160mA 1.5Ohm Max 0603 (1608 Metric)
LQW18ANR15J00D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Current Rating | 160 mA |
| Capacitance Tolerance | ±5 % |
| Inductance | 150 nH |
| Self Resonant Frequency | 1.4 GHz |
| Part Family | LQW |
| Inductance Tolerance | ±5 % |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤1.5 Ω |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±5 % |
| Resistance (DC Max) | 1.5 Ω |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.8 mm |
| Weight | 0.0027 g |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 4000 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
