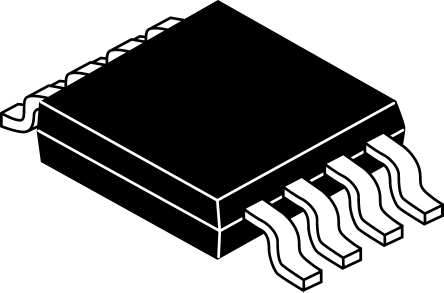

Image is for your reference only,please check specifications for details
- NCP3335ADM330R2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC15220444
-
Category:Voltage Regulator
-
Package:Micro-8
-
Datasheet:Datasheet 3D Model
-
Description:LDO Regulator Pos 3.3V 0.8A 8Pin Micro T/R
-
Stock Locations:
-
Availability:222 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.61
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 500mA Micro8™
NCP3335ADM330R2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | Micro-8 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| Number of Positions | 8 Position |
| Polarity | P-Channel |
| voltage rating | 260 mV |
| Input Voltage (Max) | 16 V |
| Input Voltage (Min) | 2.6 V |
| Output Current (Max) | 0.8 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±0.9 % |
| Input Voltage | ≤12 V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
