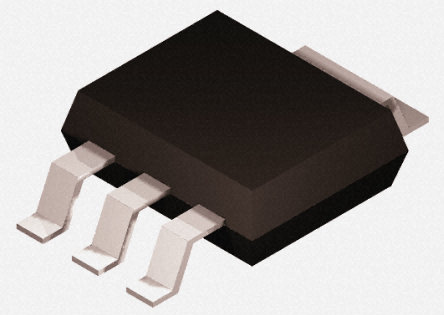

Image is for your reference only,please check specifications for details

NCP566ST12T3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC20315030
Category:
Voltage Regulator
Package:
TO-261-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP566ST12T3G Fixed LDO Voltage Regulator, 2.8V to 9V, 900mV Dropout, 1.2Vout, 1.5Aout, SOT-223-3
Stock Locations:
Availability:
261 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.75

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP566ST12T3G is a 1.2V fixed low-dropout (LDO) Linear Regulator provide 1.5A at a fixed output voltage. The fast loop response and low-dropout (LDO) voltage make this regulator ideal for applications where low voltage and good load transient response are important. Device protection includes current limit, short circuit protection and thermal shutdown.
<1µs Ultra fast transient response
Low ground current (1.5mA at Iload = 1.5A)
37µVrms Low noise
Current limit protection
Thermal shutdown protection

Show

NCP566ST12T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.2 V
Output Current	1.5 A
Number of Positions	3 Position
Polarity	P-Channel
voltage rating	900 mV
Input Voltage (Max)	9 V
Input Voltage (Min)	2.8 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±3 %
Supply Voltage (Max)	9 V
Input Voltage	≤9 V
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
