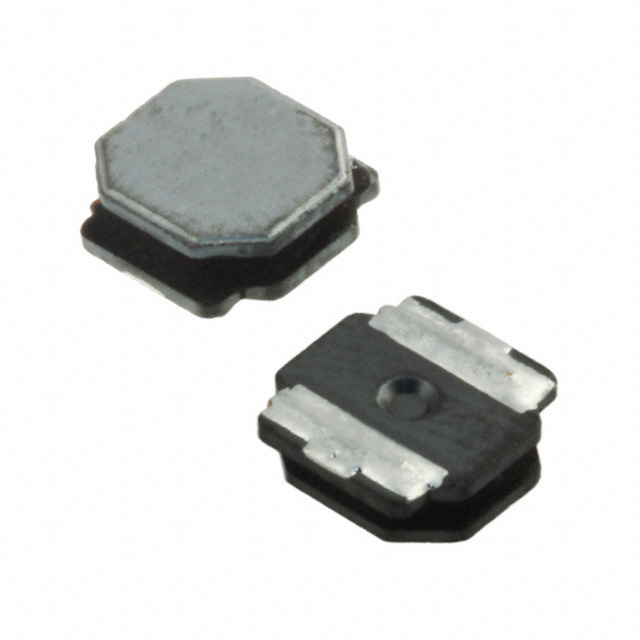

- 22µH Shielded Wirewound Inductor 1A 312mOhm Max Nonstandard
NRS5020T220MMGJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | 4.9mm x 4.9mm x 2mm |
| Current Rating | 1 A |
| Capacitance Tolerance | ±20 % |
| Halogen Free Status | Halogen Free |
| Inductance | 22 µH |
| Self Resonant Frequency | 17 MHz |
| Part Family | NR |
| Inductance Tolerance | ±20 % |
| Test Frequency | 100 kHz |
| DC Resistance (DCR) | ≤312 mΩ |
| Current Rating (DC) | 900 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Resistance (DC Max) | 0.26 Ω |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 4.9 mm |
| Size-Height | 2 mm |
| Operating Temperature | -25℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| Minimum Packing Quantity | 800 |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
