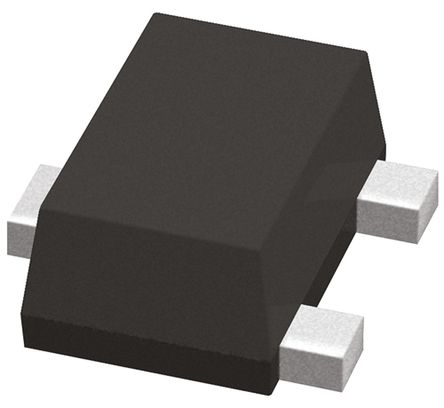

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

RB715ZT2L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-723
Voltage Rating (DC)	30.0 V
Current Rating	30.0 mA
Forward Voltage	370 mV
Forward Current	30 mA
Max Forward Surge Current (Ifsm)	200 mA
Maximum Forward Voltage (Max)	370mV @1mA
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	125℃ (Max)
	Show
Size-Length	1.2 mm
Size-Width	0.8 mm
Size-Height	0.5 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
