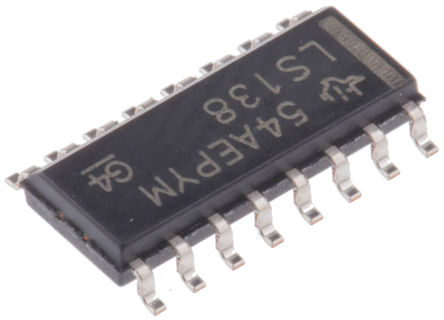

Image is for your reference only,please check specifications for details

SN74LS138D - TI
Manufacturer:
TI
ManyChip's Part#:
MC2195604
Category:
Logic Controller, Logic IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74LS138D Decoder / Demultiplexer, LS Family, 3:8, 4.75V to 5.25V, SOIC-16
Stock Locations:
Availability:
250 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.67

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LS138D is a 3-to-8 Decoder/Demultiplexer designed to be used in high-performance memory decoding or data-routing applications requiring very short propagation delay times. In high-performance memory systems, these decoders can be used to minimize the effects of system decoding. When employed with high-speed memories utilizing a fast enable circuit, the delay times of these decoders and the enable time of the memory are usually less than the typical access time of the memory. This means that the effective system delay introduced by the Schottky-clamped system decoder is negligible. The LS138 decodes one of eight lines dependent on the conditions at the three binary select inputs and the three enable inputs. Two active-low and one active-high enable inputs reduce the need for external gates or inverters when expanding. A 24-line decoder can be implemented without external inverters and a 32-line decoder requires only one inverter.
Designed specifically for high-speed
Memory decoders
Data transmission systems
3 Enable inputs to simplify cascading and/or data reception
Schottky-clamped for high performance
Green product and no Sb/Br

Show

SN74LS138D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	4.75V ~ 5.25V
Number of Outputs	8 Output
Output Current	8 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	8 Bit
Voltage Nodes	5.00 V
Bandwidth	35 MHz
Output Current Drive	-50.0 µA
Output Current (Max)	8 mA
Number of Inputs	3 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Weight	0.0022670548152 kg
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
