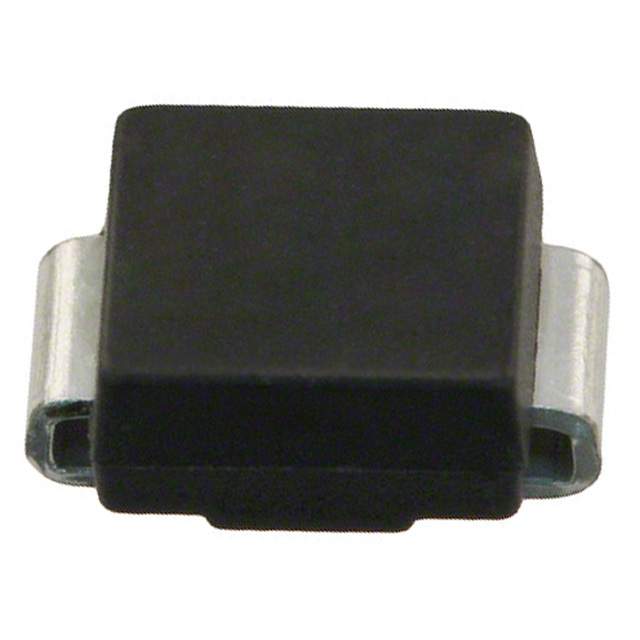

Image is for your reference only,please check specifications for details

STTH110UFY - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC56251182
Category:
TVS Diode
Package:
DO-221AA
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH110UFY Fast / Ultrafast Power Diode, 1kV, 1A, Single, 1.7V, 75ns, 20A
Stock Locations:
Availability:
1,265 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.79

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH110UFY is a high voltage Ultra-fast Rectifier especially suitable for switching mode base drive and transistor circuits. The device is also intended for use as a free-wheeling diode in power supplies and other power switching applications in automotive functions.
Very low conduction losses
Low forward and reverse recovery times
High junction temperature
AEC-Q101 qualified
ECOPACK®2 compliant component

Show

STTH110UFY Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-221AA
Forward Voltage	1.7V @1A
Thermal Resistance	20 ℃/W
Reverse recovery time	75 ns
Forward Current	1 A
Max Forward Surge Current (Ifsm)	20 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	1 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 175℃
	Show
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
