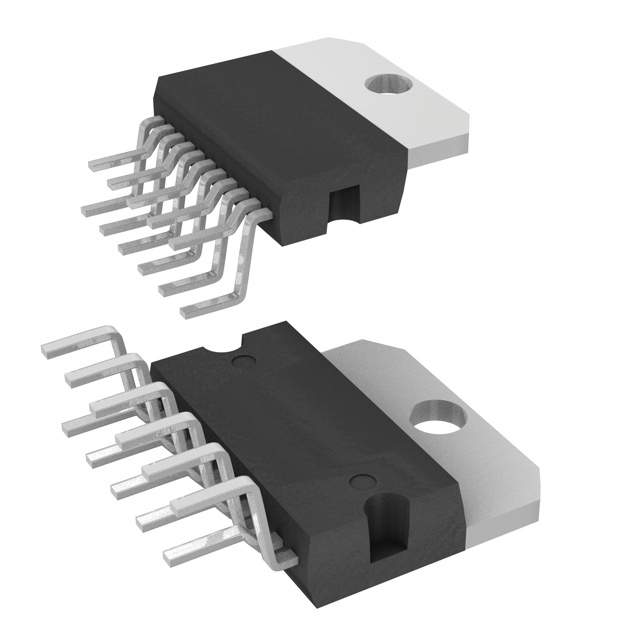

Image is for your reference only,please check specifications for details
- TDA7350A - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC126414263
-
Category:Audio Amplifier IC
-
Package:Multiwatt-11
-
Datasheet:Datasheet 3D Model
-
Description:Amplifier IC 1Channel (Mono) or 2Channel (Stereo) Class AB 22W x 1 @ 3.2Ω; 11W x 2 @ 2Ω 11-Multiwatt
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TDA7350A is a new technology class AB Audio Power Amplifier in the Multiwatt® package designed for car radio applications.
- Thanks to the fully complementary PNP/NPN output configuration the high power performance of the TDA7350A is obtained without bootstrap capacitors.
- A delayed turn-on mute circuit eliminates audible on/off noise, and a novel short circuit protection system prevents spurious intervention with highly inductive loads.
- General Features
- ■ VERY FEW EXTERNAL COMPONENTS
- ■ NO BOUCHEROT CELLS
- ■ NO BOOSTRAP CAPACITORS
- ■ HIGH OUTPUT POWER
- ■ NO SWITCH ON/OFF NOISE
- ■ VERY LOW STAND-BY CURRENT
- ■ FIXED GAIN (30dB STEREO)
- ■ PROGRAMMABLE TURN-ON DELAY
- PROTECTIONS
- ■ OUTPUT AC-DC SHORT CIRCUIT TO GROUND AND TO SUPPLY VOLTAGE
- ■ VERY INDUCTIVE LOADS
- ■ LOUDSPEAKER PROTECTION
- ■ OVERRATING CHIP TEMPERATURE
- ■ LOAD DUMP VOLTAGE
- ■ FORTUITOUS OPEN GROUND
- ■ ESD
TDA7350A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | Multiwatt-11 |
| Supply Voltage (DC) | 18.0 V |
| Supply Current | 120 mA |
| Power Dissipation | 36000 mW |
| Quiescent Current | 120 mA |
| Output Current (Max) | 5000 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 36000 mW |
| Supply Voltage | 8V ~ 18V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
