Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

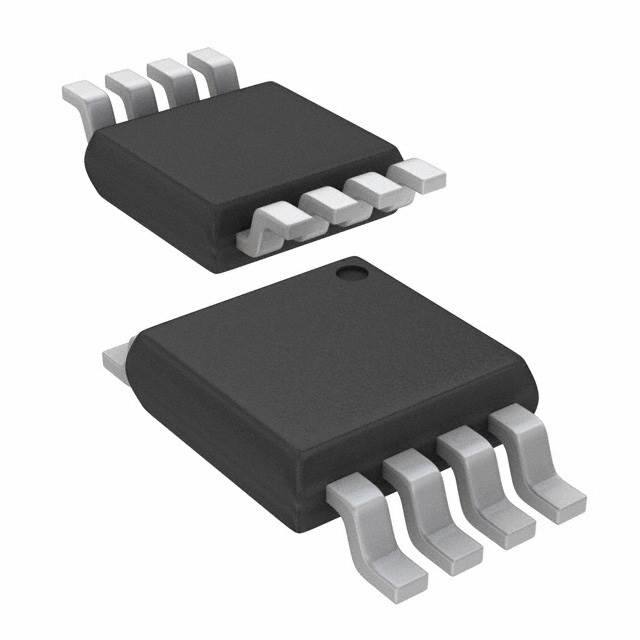

Case/Package | VSSOP-8 |
Output Current | 45mA @5V |
Supply Current | 1.35 mA |
Number of Circuits | 1 Circuit |
Number of Channels | 1 Channel |
Common Mode Rejection Ratio | 93 dB |
Input Offset Drift | 450 nV/K |
Slew Rate | 220 V/μs |
Gain Bandwidth Product | 135 MHz |
Input Offset Voltage | 50 µV |
Input Bias Current | 1 µA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
3dB Bandwidth | 150 MHz |
Minimum CMRR Range | 85dB ~ 95dB |
Supply Voltage (Max) | 5V ~ 7V |
Supply Voltage (Min) | 2.7 V |
Show | |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
