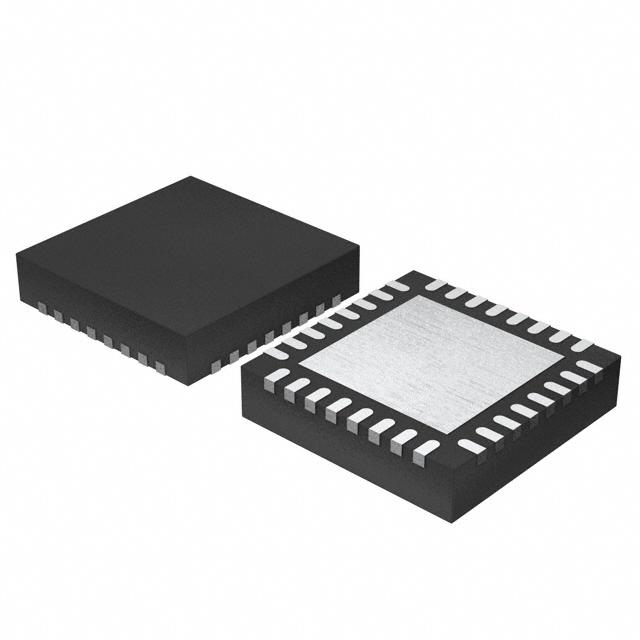

Image is for your reference only,please check specifications for details

TPS51120RHBR - TI
Manufacturer:
TI
ManyChip's Part#:
MC8834288
Category:
DC to DC Converter
Package:
VQFN-32
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) Dual Current Mode, Synch Step-Down Controller With 100mA Standby Reg For Notebook System Power DC DC Cntrlr Dual-OUT Sync Buck 4.5V to 28V Input 32Pin VQFN EP T/R
Stock Locations:
Availability:
178 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The synchronous buck TPS51120RHBR DC voltage controller from Texas Instruments allows you to change the DC voltage level to another one. Its output produces a current of 20(Max) A. This DC voltage controller has 2 outputs. With an output that has a voltage of 3.3|5 V, this is power management at its best. This DC voltage controller has an input voltage of 4.5 to 28 V. You can operate this at a switching frequency of 580 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

TPS51120RHBR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	VQFN-32
Supply Voltage (DC)	4.50V (min)
Number of Outputs	2 Output
Output Voltage	1.05V ~ 5.5V
Output Current	20 A
Number of Positions	32 Position
Power Dissipation	2900 mW
Quiescent Current	750 µA
Number of Regulated Outputs	2 Output
Switching Frequency	580 kHz
Thermal Shutdown	Yes
Topology	Buck
Duty Cycle	88 %
Input Voltage (Max)	28 V
Input Voltage (Min)	4.5 V
Output Current (Max)	20 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2900 mW
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	28 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 28V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
