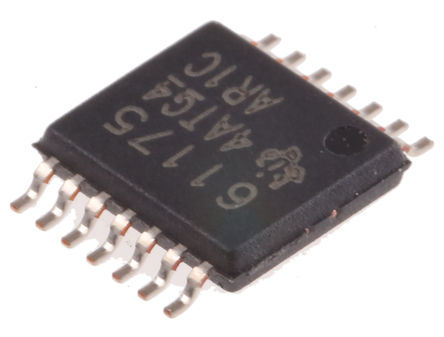

TPS61175PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC23868296
Category:
DC to DC Converter
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
Step-Up Regulator 3A High Voltage Boost Converter with Soft-start and Programmable Switching Frequency Conv DC-DC Single Step Up 2.9V to 18V 14Pin HTSSOP EP Tube
Stock Locations:
Availability:
269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 352.82

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61175PWP is a High Voltage Boost Converter with soft-start and programmable switching frequency. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC and flyback. The device has a wide input voltage range to support application with input voltage from multicell batteries or regulated 5, 12V power rails. The TPS61175 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is set by either an external resistor or an external clock signal. The user can program the switching frequency from 200kHz to 2.2MHz. The device features a programmable soft-start function to limit inrush current during start-up and has other built-in protection features, such as pulse-by-pulse over-current limit and thermal shutdown.
3A 40V Internal switch
High-efficiency power conversion (up to 93%)
200kHz to 2.2MHz Frequency set by external resistor
Synchronous external switching frequency
User-defined soft-start into full load
Skip-switching cycle for output regulation at light load
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS61175PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Frequency	2.20 MHz
Power Rating	2.25 W
Number of Outputs	1 Output
Output Voltage	2.9V ~ 38V
Output Current	3 A
Number of Channels	1 Channel
Number of Positions	14 Position
Quiescent Current	3.00 mA
Number of Regulated Outputs	1 Output
Switching Frequency	2.2 MHz
Input Voltage (Max)	18 V
Input Voltage (Min)	2.9 V
Output Voltage (Max)	38 V
Output Voltage (Min)	2.9 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.9 V
Input Voltage	2.9V ~ 18V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
