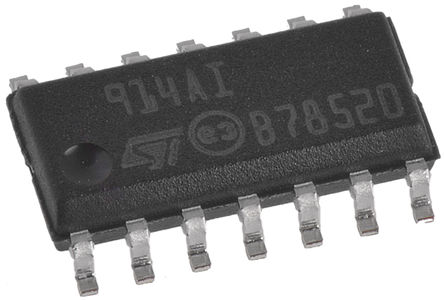

Image is for your reference only,please check specifications for details
- TS914AID - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC86324663
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-14
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Quad, 4 Amplifier, 1.4MHz, 1V/µs, 2.7V to 16V, SOIC, 14Pins
-
Stock Locations:
-
Availability:200 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.45
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS914 device is a rail-to-rail CMOS quad operational amplifier designed to operate with a single or dual supply voltage.
- The input voltage range Vicmincludes the two supply rails VCC+and VCC-.
- The output reaches VCC\- +50 mV, VCC+-50 mV, with RL= 10 kΩ, and VCC\- +350 mV, VCC+-350 mV, with RL= 600 Ω.
- This product offers a broad supply voltage operating range from 2.7 to 16 V and a supply current of only 200 μA/amp (VCC= 3 V).
- The source and sink output current capability is typically 40 mA (at VCC= 3 V), fixed by an internal limitation circuit.
- **Key Features**
- Rail-to-rail input and output voltage ranges
- Single (or dual) supply operation from 2.7 to 16 V
- Extremely low input bias current: 1 pA typical
- Low input offset voltage: 5 mV max. (A grade)
- Specified for 600 Ω and 100 Ω loads
- Low supply current: 200 μA/ampli. (VCC = 3 V)
- Latch-up immunity
- Spice macromodel included in this specification
- Related products
- See TS56x series for better accuracy and smaller packages
TS914AID Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | SOIC-14 |
| Output Current | 40mA @3V |
| Supply Current | 400 µA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Common Mode Rejection Ratio | 85 dB |
| Bandwidth | 1.4 MHz |
| Slew Rate | 1.00 V/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 5 mV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1.4 MHz |
| Minimum CMRR Range | 85 dB |
| Supply Voltage | 2.7V ~ 16V |
| Supply Voltage (Max) | 16 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 4 mm |
| Size-Width | 8.75 mm |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
