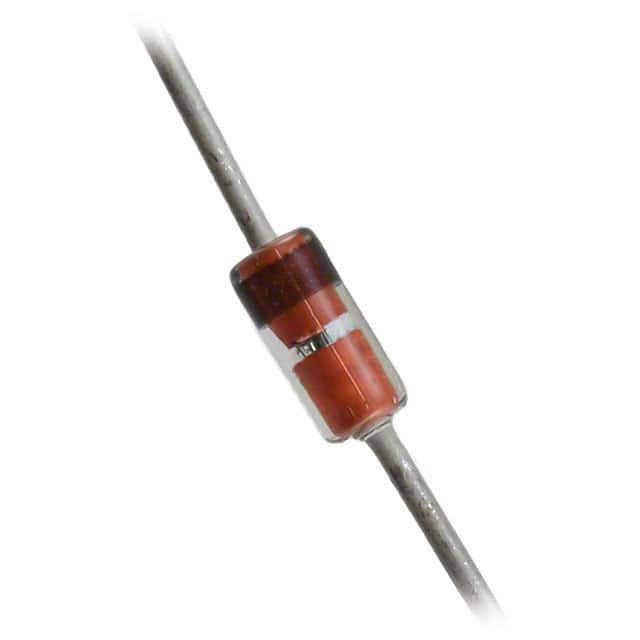

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Data Applicable to all series in this group.
- Features
- ---
- |
- Complete Voltage Range - 1.8 to 200 Volts
- DO-204AH Package - Smaller than Conventional DO-204AA Package
- Double Slug Type Construction
- Metallurgically Bonded Construction
- Mechanical Characteristics:
- CASE: Double slug type, hermetically sealed glass
- MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230?C, 1/16", from case for 10 seconds
- FINISH: All external surfaces are corrosion resistant with readily solderable leads
- POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
- MOUNTING POSITION: Any
- WAFER FAB LOCATION: Phoenix, Arizona
- ASSEMBLY/TEST LOCATION: Seoul, Korea
1N5257B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 2 Pin |
| Case/Package | DO-35 |
| Number of Positions | 2 Position |
| Power Dissipation | 0.5 W |
| Test Current | 3.8 mA |
| Zener Voltage | 33 V |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Product Lifecycle Status | Unknown |
| Packaging | Bag |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
