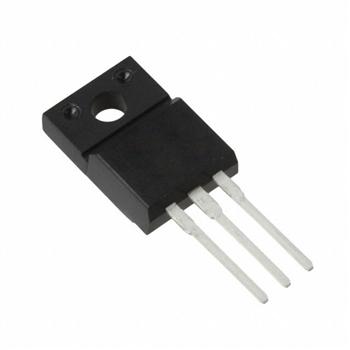

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Chopper Regulator, DC−DC Converter and Motor Drive Applications
- 4 V gate drive
- Low drain−source ON resistance : RDS (ON)= 13 mΩ(typ.)
- High forward transfer admittance : |Yfs| = 40 S (typ.)
- Low leakage current : IDSS= 100 µA (max) (VDS= 60 V)
- Enhancement−mode : Vth= 0.8~2.0 V (VDS= 10 V, ID= 1mA)
2SK2312 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | 60.0 V |
| Current Rating | 45.0 A |
| Polarity | N-CH |
| Power Dissipation | 45 W |
| Drain to Source Voltage (Vds) | 60.0 V |
| Continuous Drain Current (Ids) | 45.0 A |
| Rise Time | 25 ns |
| Fall Time | 60 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.5 mm |
| Size-Height | 15 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
