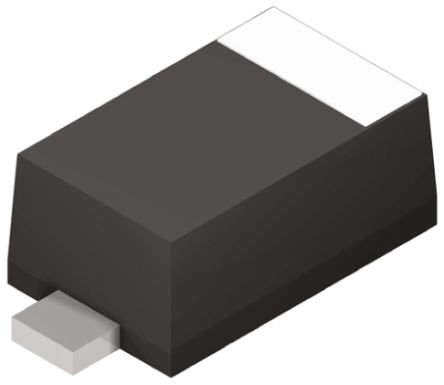

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General description
General-purpose Schottky diodes in small Surface-Mounted Device (SMD) plastic packages.
Features
■ High switching speed
■ Low leakage current
■ High breakdown voltage
■ Low capacitance
Applications
■ Ultra high-speed switching
■ Voltage clamping

Show

BAS70H Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123F
Max Forward Surge Current (Ifsm)	100 mA
Forward Current (Max)	70 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	2.7 mm
Size-Width	1.7 mm
Size-Height	1.2 mm
Product Lifecycle Status	Unknown
RoHS
Lead-Free Status	Lead Free
