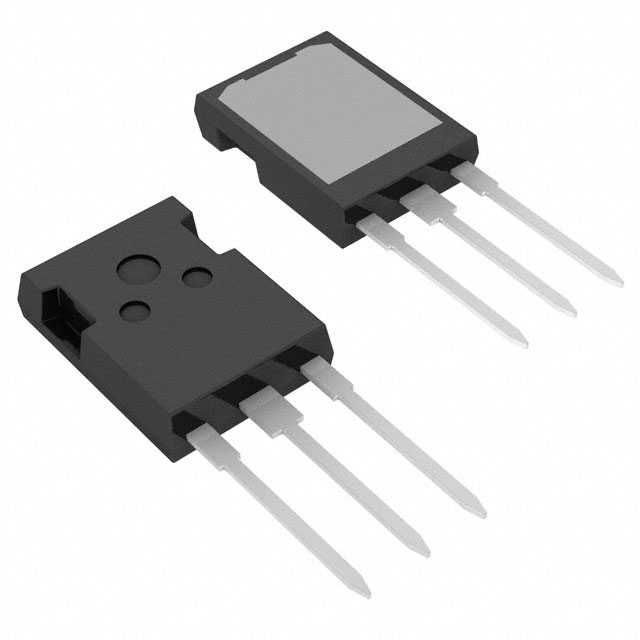

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXFX34N80 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	800 V
Current Rating	34.0 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	240 mΩ
Polarity	N-CH
Power Dissipation	560000 mW
Drain to Source Voltage (Vds)	800 V
Continuous Drain Current (Ids)	34.0 A
Rise Time	45 ns
Input Capacitance (Ciss)	7500pF @25V(Vds)
Fall Time	40 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	560W (Tc)
	Show
Size-Width	5.21 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
