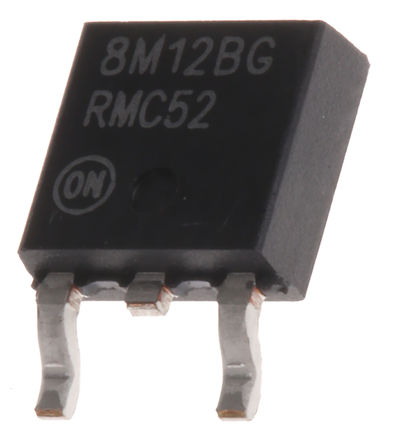

MC78M12BDTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC8269639
Category:
Voltage Regulator
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC78M12BDTG Linear Voltage Regulator, 7812, Fixed, Positive Voltage, 19V To 35V In, 12V And 0.5A Out, TO-252-3
Stock Locations:
Availability:
172 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.63

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC78M12BDTG is a 3-terminal Positive Voltage Regulator specified for only half the output current, it is intended for local and on-card voltage regulation. This has internal current limiting, thermal shutdown circuitry and safe-area compensation for the internal pass transistor combines to make this device remarkably rugged under most operating conditions. Maximum output current with adequate heat-sinking is 500mA.
No external components required
Internal thermal overload protection
Internal short-circuit current limiting
Output transistor safe area compensation
-40 to 125°C Temperature range

Show

MC78M12BDTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Operating Voltage	14.5V ~ 27V
Current Rating	500 mA
Power Rating	5 W
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	35.0V (max)
Output Voltage	12 V
Output Current	500 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	6 mA
voltage rating	2V @350mA
Input Voltage (Max)	35 V
Input Voltage (Min)	19 V
Output Voltage (Max)	12 V
Output Voltage (Min)	12 V
Output Current (Max)	700 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	4 %
Supply Voltage (Max)	27 VDC
Supply Voltage (Min)	14.5 VDC
Input Voltage	35 V
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
