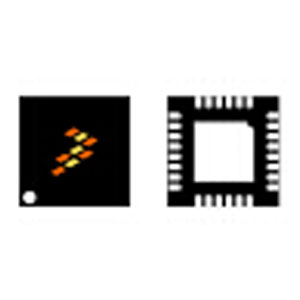

Image is for your reference only,please check specifications for details

MKL17Z128VFT4 - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC73430415
Category:
Microcontroller, MCU IC
Package:
QFN-48
Datasheet:
Datasheet 3D Model
Description:
Kinetis L 32Bit MCU, ARM Cortex-M0+ core, 128KB Flash, 48MHz, QFN 48
Stock Locations:
Availability:
1,017 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.92

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
The Kinetis® KL1x is a general purpose ultra-low-power MCU family, providing additional memory, communications and analog peripheral options beyond those offered in the Kinetis KL0x MCU family.
The KL1x MCU family is compatible with Kinetis K10 MCUs (based on Arm® Cortex®-M4) and with all other Kinetis KL1x, KL2x, KL3x and KL4x series MCUs, providing a migration path to higher performance and feature integration.
MoreLess
## Features
### Ultra-Low-Power
* Next-generation 32-bit Arm® Cortex®-M0+ core: 2x more CoreMark/mA than the closest 8/16-bit architecture
* Single-cycle fast I/O access port facilitates bit banging and software protocol emulation, keeping an 8-bit "look and feel"
* Multiple flexible low-power modes, including new compute clocking option which reduces dynamic power by placing peripherals in an asynchronous stop mode
* LPUART, SPI, I2C, FlexIO, ADC, DAC, LP timer and DMA support low-power mode operation without waking up the core
### Memory
* Up to 256 KB flash with 64 byte flash cache, up to 32 KB RAM
* Security circuitry to prevent unauthorized access to RAM and flash contents
* 16 KB ROM and built-in boot loader simplifies the effort to program MCU and allows for easy flash upgrades
### Performance
* Arm® Cortex®-M0+ core, 48 MHz core frequency over full voltage and temperature range (-40ºC to +105ºC)
* Bit manipulation engine for improved bit handling of peripheral modules
* Thumb instruction set combines high code density with 32-bit performance
* Up to 4-ch. DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
* Independent-clocked COP guards against clock skew or code runaway for fail-safe applications
### Mixed-Signal
* Up to 16-bit ADC with configurable resolution, sample time and conversion speed/power
* Integrated temperature sensor
* High-speed comparator with internal 6-bit DAC
* 12-bit DAC with DMA support
### Timing and Control
* Two 6-ch. and one 2-ch. 16-bit low-power timer PWM modules with DMA support
* 2-ch., 32-bit periodic interrupt timer provides time base for RTOS task schedule or trigger source for ADC conversion
* Low-power timer allows operation in all power modes except for VLLS0
* Real-time clock with calendar
### Human-Machine Interface
* Capacitive touch sense interface supports up to 16 external electrodes and DMA data transfer
* GPIO with pin interrupt support, DMA request capability and other pin control options
### Connectivity and Communications
* Two I2C with DMA support, up to 1Mbps and compatible with SMBus V2 features
* One LPUART and two UART with DMA support
* Two SPI with DMA support
* I2S module for audio applications
* FlexIO module supports a wide range of protocols including UART, I2C, SPI, I2S, PWM waveform generation
* FlexIO for universal or customized serial peripheral emulation
* High accuracy internal clock reference to support high performance communication

Show

MKL17Z128VFT4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	QFN-48
Number of Positions	48 Position
RAM Memory Size	32 KB
Number of Bits	32 Bit
FLASH Memory Size	128 KB
Number of ADCs	1 ADC
Number of Inputs and Outputs	40 Input IO
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.71 V
	Show
Weight	144.4 mg
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
