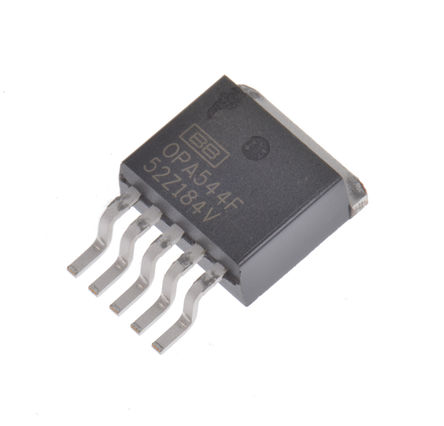

Image is for your reference only,please check specifications for details
- OPA544FKTTT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC17030708
-
Category:Operational Amplifier, OP Amp IC
-
Package:TO-263-5
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Single, 1 Amplifier, 1.4MHz, 8V/µs, 20V to 70V, TO-263, 5Pins
-
Stock Locations:
-
Availability:111 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 18.73
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The OPA544FKTTT is a single high-voltage/high-current Operational Amplifier suitable for driving a wide variety of high power loads. High performance FET op amp circuitry and high power output stage are combined on a single monolithic chip. The OPA544 is protected by internal current limit and thermal shutdown circuits.
- Internal current limit
- Thermal shutdown protection
- 100pA (IB) Maximum FET input
- 2A Minimum high output current
- 10µV/°C Typical offset drift
- 106dB Typical CMRR
OPA544FKTTT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TO-263-5 |
| Supply Current | 12 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 5 Position |
| Common Mode Rejection Ratio | 90 dB |
| Input Offset Drift | 10.0 µV/K |
| Bandwidth | 1.4 MHz |
| Slew Rate | 8.00 V/μs |
| Gain Bandwidth Product | 1.4 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 15 pA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1.4 MHz |
| Minimum CMRR Range | 90 dB |
| Supply Voltage | 20V ~ 70V |
| Show | |
| Size-Length | 10.16 mm |
| Size-Width | 8.42 mm |
| Size-Height | 4.58 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
