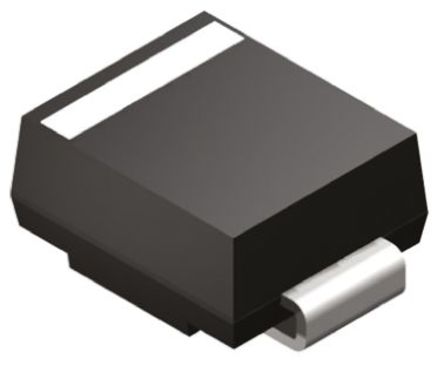

SMBJ58CA - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC1598833
Category:
TVS Diode
Package:
DO-214AA-2
Datasheet:
Datasheet 3D Model
Description:
LITTELFUSE SMBJ58CA TVS Diode, SMBJ Series, Bidirectional, 58V, 93.6V, DO-214AA, 2Pins
Stock Locations:
Availability:
341 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SMBJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
600W Peak pulse power capability at 10x1000µs waveform
Built-in strain relief
Glass passivated chip junction
Low incremental surge resistance
Excellent clamping capability
0.01% Repetition rate (duty cycle)
<1ps from 0V to V(BR) Minimum fast response time
<1µA above 12V Current IR
Available in unidirectional and bidirectional
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
-65 to 150°C Operating temperature range

Show

SMBJ58CA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA-2
Voltage Rating (DC)	58.0 V
Operating Voltage	58 V
Capacitance	700 pF
Power Rating	600 W
Breakdown Voltage	67.8 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Power Dissipation	600 W
Clamping Voltage	93.6 V
Test Current	1 mA
Max Breakdown Voltage	71.2 V
Max Forward Surge Current (Ifsm)	100 A
Peak Pulse Power	600 W
Min Breakdown Voltage	64.4 V
Reverse Breakdown Voltage	64.4 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Length	4.57 mm
Size-Width	3.94 mm
Size-Height	2.237 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
HK STC License	NLR
