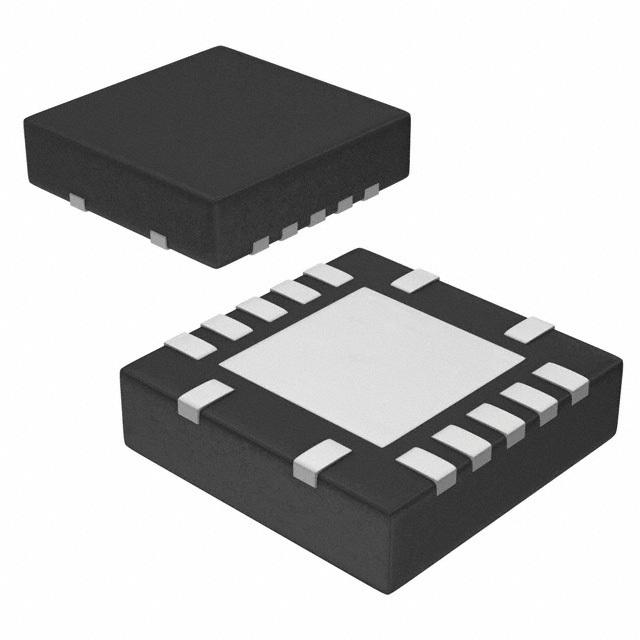

SN74CBTLV3125RGYR - TI
Manufacturer:
TI
ManyChip's Part#:
MC20408703
Category:
Logic Controller, Logic IC
Package:
VQFN-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74CBTLV3125RGYR Bus Switch, 4Channels, 64mA, 2.3V to 3.6V, QFN-14
Stock Locations:
Availability:
242 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74CBTLV3125 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated output-enable (OE\\\\) input is high.
This device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Show

SN74CBTLV3125RGYR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	VQFN-14
Supply Voltage (DC)	2.30V ~ 3.60V
Output Current	64 mA
Contacts Type	SPST
Number of Channels	4 Channel
Number of Bits	4 Bit
Propagation Delay Max (tpd)	250 ps
Polarity	Non-Inverting
Voltage Nodes	3.30 V, 2.50 V
Bandwidth	200 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
