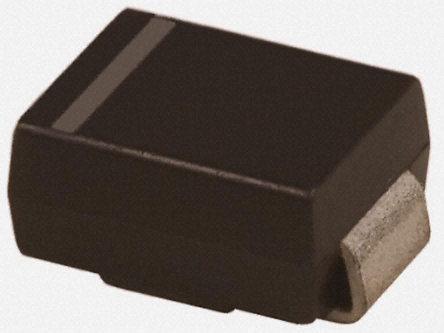

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH2R06U is a Turbo-2 high-efficiency Ultra-fast Diode especially suited for switching mode base drive and transistor circuits. It is intended for use in high frequency inverters, free-wheeling and polarity protection.
Planar Pt doping technology
Very low conduction losses
Negligible switching losses
Low forward and reverse recovery times
High junction temperature
Band indicates cathode

Show

STTH2R06U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Voltage Rating (DC)	600 V
Current Rating	2.00 A
Output Current	≤2.00 A
Forward Voltage	1.7V @2A
Polarity	Standard
Thermal Resistance	25 ℃/W
Reverse recovery time	50 ns
Forward Current	2 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	2 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	4.6 mm
Size-Width	3.95 mm
Size-Height	2.45 mm
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
