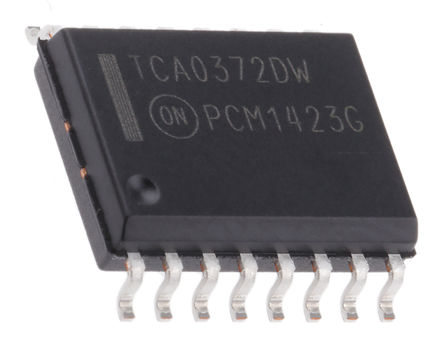

Image is for your reference only,please check specifications for details
- TCA0372DWR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC1409700
-
Category:Operational Amplifier, OP Amp IC
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:Operational Amplifier, Zero Deadband, 2 Amplifier, 1.4MHz, 1.4V/µs, 5V to 40V, WSOIC, 16Pins
-
Stock Locations:
-
Availability:56 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.42
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TCA0372DWR2G is a dual power Operational Amplifier for use with sensor interface. The TCA0372 is a monolithic circuit intended for use as a power operational amplifier in a wide range of applications, including servo amplifier and power supplies. No dead-band crossover distortion provides better performance for driving coils.
- Excellent gain and phase margins
- Common-mode input includes ground
- Zero dead-band crossover distortion
- Internal thermal shutdown
- Output current to 1A
TCA0372DWR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Halogen Free Status | Halogen Free |
| Supply Current | 5 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 16 Position |
| Common Mode Rejection Ratio | 90 dB |
| Bandwidth | 1.4 MHz |
| Slew Rate | 1.40 V/μs |
| Gain Bandwidth Product | 1.4 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 100 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1.4 MHz |
| Supply Voltage | 5V ~ 40V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 5.45 mm |
| Size-Height | 1.85 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
