Description
- description
- The TLC0820AC and the TLC0820AI are Advanced LinCMOS 8-bit analog-to-digital converters each consisting of two 4-bit flash converters, a 4-bit digital-to-analog converter, a summing (error) amplifier, control logic, and a result latch circuit. The modified flash technique allows low-power integrated circuitry to complete an 8-bit conversion in 1.18 µs over temperature. The on-chip track-and-hold circuit has a 100-ns sample window and allows these devices to convert continuous analog signals having slew rates of up to 100 mV/µs without external sampling components.
- • Advanced LinCMOS™ Silicon-Gate Technology
- • 8-Bit Resolution
- • Differential Reference Inputs
- • Parallel Microprocessor Interface
- • Conversion and Access Time Over Temperature Range
- Read Mode . . . 2.5 µs Max
- • No External Clock or Oscillator Components Required
- • On-Chip Track and Hold
- • Single 5-V Supply
- • TLC0820A Is Direct Replacement for National Semiconductor ADC0820C/CC and Analog Devices AD7820K/B/T

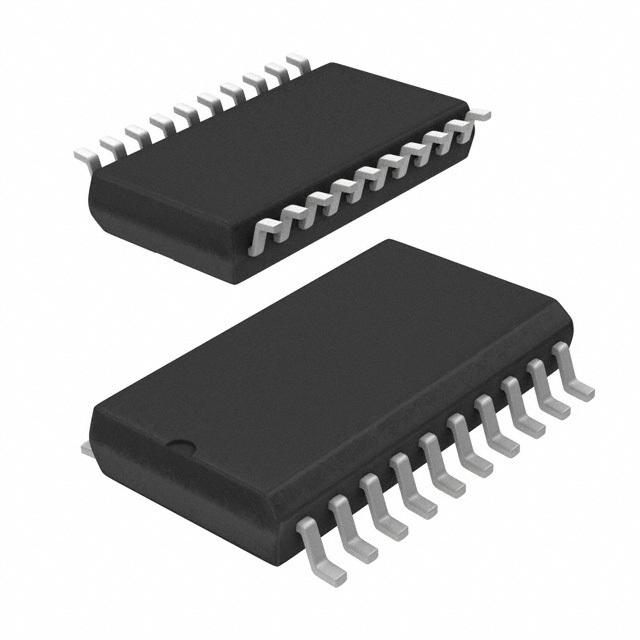

TLC0820ACDW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Digital Logic Level | SAR |
| Supply Voltage (DC) | 4.50V (min) |
| Supply Current | 7.50 mA |
| Number of Circuits | 1 Circuit |
| Number of Bits | 8 Bit |
| Sample Rate | 392 ksps |
| Power Consumption | 37.5 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Number of Input Channels | 1 Channel |
| Input Voltage | 5 V |
| Show | |
| Size-Length | 12.8 mm |
| Size-Width | 7.52 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
