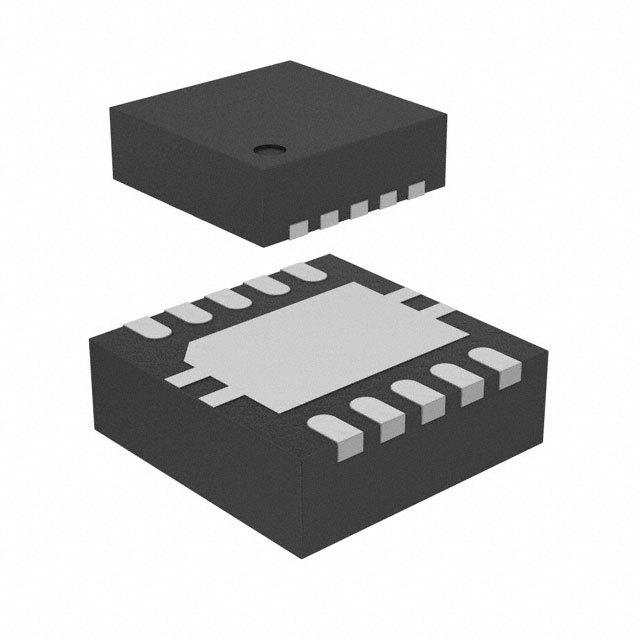

TPS61081DRCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC40175461
Category:
DC to DC Converter
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
27V, 1.2A switch, 1.2MHz Boost Converter with integrated power diode 10-VSON -40℃ to 85℃
Stock Locations:
Availability:
325 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.35

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS6108x is a 1.2 MHz/600 kHz fixed-frequency boost regulator designed for high integration, which integrates a power switch, an I/O isolation switch, and a power diode. When a short-circuit condition is detected, the isolation switch opens up to disconnect the output from the input. As a result, the IC protects itself and the input source from any pin, except VIN, from being shorted to ground. The isolation switch also disconnects the output from input during shutdown to prevent any leakage current. Other provisions for protection include 0.5 A/1.3 A peak-to-peak overcurrent protection, programmable soft start (SS), over voltage protection (OVP), thermal shutdown, and under voltage lockout (UVLO).
The IC operates from input supplies including single Li-ion battery, triple NiMH, and regulated 5 V, such as USB output. The output can be boosted up to 27 V. TPS6108x can provide the supply voltages of OLED, TFT-LCD bias, 12-V and 24-V power rails. The output of TPS6108x can also be configured as a current source to power up to seven WLEDs in flash light applications.

Show

TPS61081DRCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON-10
Frequency	600kHz, 1.2MHz
Supply Voltage (DC)	6.00V (max)
Number of Outputs	1 Output
Output Voltage	2.5V ~ 27V
Output Current	1.3 A
Number of Positions	10 Position
Quiescent Current	6.00 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1.5 MHz
Topology	Boost
Input Voltage (Max)	6 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	27 V
Output Voltage (Min)	2.5 V
Output Current (Max)	0.35 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5V ~ 6V
Input Voltage	2.5V ~ 6V
	Show
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
