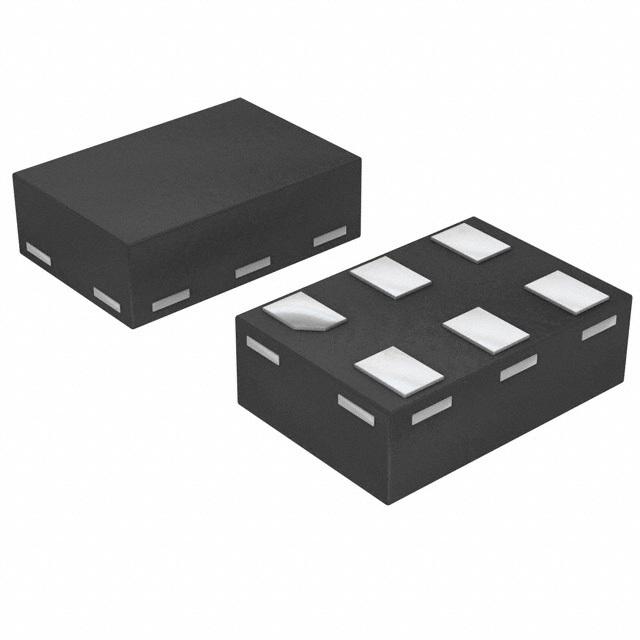

BGA824N6E6327XTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC2009325
Category:
Amplifier chip
Package:
TSNP-6-2
Datasheet:
Datasheet 3D Model
Description:
Narrow Band Low Power, 1550MHz Min, 1615MHz Max, 1.10 X 0.7MM, ROHS COMPLIANT, LEADLESS, ULTRA SMALL, TSNP-6-2, 6Pin
Stock Locations:
Availability:
10,059 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.1

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
The BGA824N6 is a front-end low noise amplifier for Global Navigation Satellite Systems (GNSS) from 1550 MHz to 1615 MHz like GPS, GLONASS, Beidou, Galileo and others. The LNA provides 17.0 dB gain and 0.55 dB noise figure at a current consumption of 3.8 mA in the application configuration described in Chapter 3 (see datasheet). The BGA824N6 is based upon Infineon Technologies‘ B7HF Silicon Germanium technology. It operates from 1.5 V to 3.6 V supply voltage.
Summary of Features:
High insertion power gain: 17.0 dB
Out-of-band input 3rd order intercept point: +7 dBm
Input 1 dB compression point: -6 dBm
Low noise figure: 0.55 dB
Low current consumption: 3.8 mA
Operating frequencies: 1550 - 1615 MHz
Supply voltage: 1.5 V to 3.3 V
Digital on/off switch (1V logic high level)
Ultra small TSNP-6-2 leadless package (footprint: 0.7 x 1.1 mm
B7HF Silicon Germanium technology
RF output internally matched to 50 Ω
Only 1 external SMD component necessary
2kV HBM ESD protection (including AI-pin)
Pb-free (RoHS compliant) package Application
Target Applications:
Ideal for all Global Navigation Satellite Systems (GNSS) like GPS, GLONASS, Beidou, Galileo and others.

Show

BGA824N6E6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	6 Pin
Case/Package	TSNP-6-2
Frequency	1.55GHz ~ 1.615GHz
Supply Current	3.8 mA
Number of Channels	1 Channel
Number of Positions	6 Position
Power Dissipation	60 mW
Gain	17 dB
Test Frequency	1.55GHz ~ 1.615GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	60 mW
Supply Voltage	1.5V ~ 3.3V
Supply Voltage (Max)	3.3 V
Supply Voltage (Min)	1.5 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
