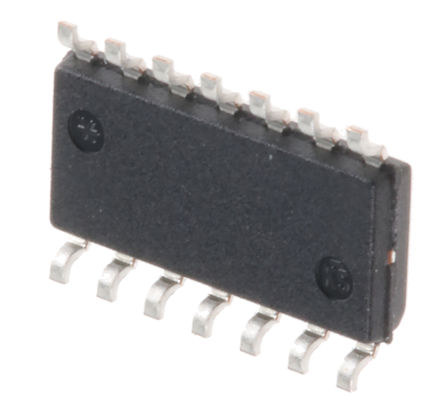

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC1496BDG is a balanced modulator and demodulator in 14 pin SOIC package. It is designed for use where the output voltage is a product of an input voltage (signal) and a switching function (carrier). Typical applications include suppressed carrier and amplitude modulation, synchronous detection, FM detection, phase detection and chopper application.
Excellent carrier suppression of -65dB typical at 0.5MHz and -50dB typical at 10MHz
Adjustable gain and signal handling
Balanced inputs and outputs
High common mode rejection of -85dB
Contains 8 active transistors
Operating ambient temperature range from -40°C to +125°C
Carrier feedthrough 40µVrms (VC = 60mVrms sine wave and offset adjusted to zero, fC = 1KHz)
Carrier suppression of 65dB at fC = 500KHz, 60mVrms sine wave
Power supply current of 2mA
Signal gain of 3.5V/V (VS = 100mVrms, f = 1KHz, VC = 0.5Vdc)

Show

MC1496BDG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Frequency	300 MHz
Supply Voltage (DC)	12.0 V
Halogen Free Status	Halogen Free
Supply Current	2.00 mA
Number of Positions	14 Position
Power Dissipation	33 mW
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	33 mW
Supply Voltage (Max)	30 VDC
Supply Voltage (Min)	12 VDC
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.75 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
