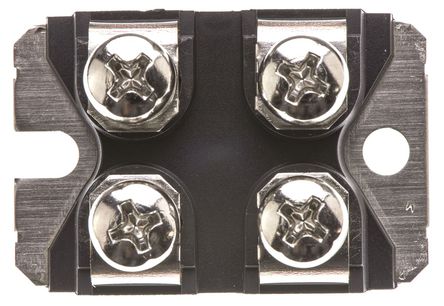

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STPS200170TV1 is a high voltage Power Schottky Rectifier features negligible switching losses, low leakage current, good trade-off between leakage current and forward voltage drop. This device is intended for use in the secondary rectification of applications.
Avalanche rated

Show

STPS200170TV1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	ISOTOP
Voltage Rating (DC)	170 V
Current Rating	200 A
Forward Voltage	0.975 V
Forward Current	200 A
Max Forward Surge Current (Ifsm)	700 A
Maximum Forward Voltage (Max)	630 mV
Forward Current (Max)	200 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	38.2 mm
Size-Width	25.5 mm
Size-Height	9.1 mm
Operating Temperature	150 ℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
